OUTDOOR  ANIMAL PROOF ALARM SENSOR   PRICE  £58



ZX9Comprises of a small animal proof outdoor alarm sensor with an auto reset alarm output relay all in one module size 160x80x50mm.

The dual pir sensor incorporates advanced signal processing which eliminates false alarms from small animals under 10kg eg cats and foxes.
(A VX 40 is also available to reject false alarms from larger animals up to 1.2m in height £120)
The sensor will operate with any burglar alarm system or as a basic stand alone alarm powered by a 12v battery  or mains adaptor.

The sensor will activate buzzers,sirens,phone dialer's or cctv before a break in has occurred,saving damage to windows, doors etc

SPECIFICATION.

DETECTION RANGE:  Selectable 8 or 12 meters with  90 degree wide angle coverage.
PULSE COUNT: Selectable 1 or 2 pulses for hostile environments.
ALARM OUTPUT: Relay output NO or NC  1amp contacts.
ALARM TIME: Selectable  4 or 20 seconds alarm sounder auto reset time,providing intruders are no longer detected.
DAY NIGHT:Can be set for night time only or 24 hour operation.
POWER:Operates from 12v battery,mains adaptor or solar panel standby current 7ma.
WEATHER PROOF:To IP56 for internal and external use.

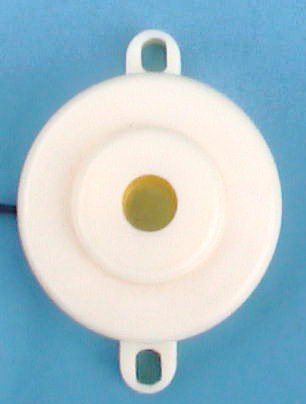

buzINTERNAL BUZZER    PRICE £4

Up to 10 internal 12v buzzers can be connected to the sensor at different locations to alert occupants of approaching intruders.
Connect together with 2 core cable.

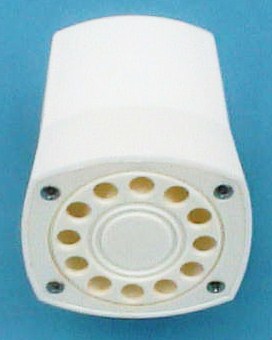

sirenHIGH POWER 118DB SIREN    PRICE  £18

Up to 2 high power 12v sirens can be connected to the sensor to warn off approaching intruders.
Can be installed internally or externally in sheltered positions.
Connect together with 2 core cable.

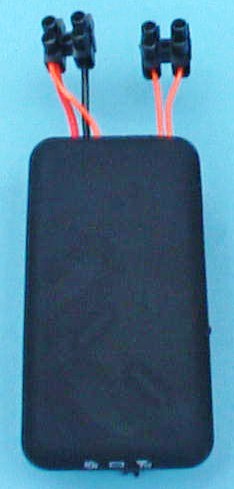

gsmspyGSM TELEPHONE DIALER  PRICE £128

Connects to a 12v supply and the alarm output of the sensor.When intruders are detected,the dialer sends out alarm activated text messages to 3 land line or mobile phone  numbers then dials the numbers in turn.Built in GPS enables the dialer to be tracked if stolen.Supplied with a surveillance microphone to enables intruders voices to be monitored over the phone.

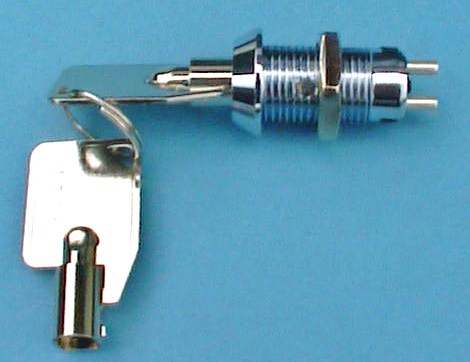

keyswKEY SWITCH   PRICE £6

Any number of key switches can be installed to arm and disarm the sensor from different locations.

Hidden on / off switches (eg light switch ) can be used in place of key switch if required.


DIGITAL TIME SWITCH   PRICE £28

Operates from the 12v supply and can be programed to automatically set and unset the alarm sensor at different times of day  or night through out the week.


MAINS POWER SUPPLY  PRICE £14

Plug in type 12v 2amp supply will power up to 10 KS 208 sensors and 2 sirens or 10 buzzers or GSM dialer.


SOLAR CHARGER  PRICE FROM £50

To charge up 12v battery where no mains power is available,price depends on number of sensors and alarm activations.

IDEAL TO PROTECT:

VEHICLES IN DRIVE WAYS
GARDEN  ORNAMENTS AND PLANTS
DIESEL AND HEATING OIL STORAGE TANKS
OUTSIDE STORAGE AREAS


OR AS AN
ISOLATED OUTDOOR ALARM SYSTEM TO PROTECT:

LIVE STOCK AND STABLES
ISOLATED BUILDINGS AND COMPOUNDS
CONSTRUCTION SITES
LEAD ROOFS
BOATS AND MARINAS
AIRCRAFT AND AIR FIELDS

 .
